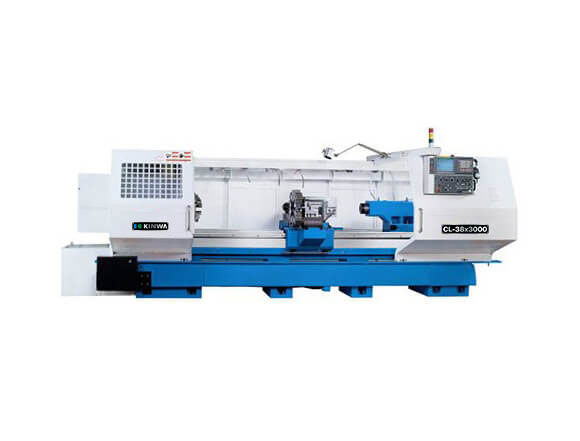

CL-38
- Swing 660, 900 mm
- Between centers 1000 ~ 6000 mm
- Spindle bore 120,186, 258, 375 mm
- Spindle motor 30, 40 HP
| Swing over bed | 660 mm |
| Swing over cross slide | 370 mm |
| Distance between centers | 1155, 1655, 2155, 3435, 4385 mm |
| Width of bed | 460 mm |
| X - axis | 540 mm |
| Z - axis | 950, 1450, 1950, 3220, 4170 mm |
| Spindle bore | φ 120 mm ( A2 - 11, 6 ~ 1600 rpm ) φ 186 mm ( A2 - 15, 3 ~ 1000 rpm ) |
| Number of spindle speed range | 2 |
| OD tool shank | V 8 : φ 25 mm H 4 : φ 32 mm ( Option ) |
| ID tool shank ( Max. ) | V 8 : φ 40 mm H 4 : φ 50 mm ( Option ) H 6 : φ 50 mm ( Option ) |
| X - axis | 10 m / min |
| Z - axis | 10 m / min |
| Tailstock stroke | 220 mm |
| Quill diameter | 150 mm |
| Quill tpaer | MT # 5 |
| Main motor (30 min.) | αP 40 i ( 30 HP / 25 HP ) |
| Servo motor | X : α 12 is ( 3.6 HP ) Z : α 22 is ( 5.4 HP ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 5335, 5790, 6290, 6940, 8370 mm |
| Width of machine | 2313 mm |
| Height of machine | 2000 mm |
| Weight of machine | 6400, 6800, 7400, 8400, 10100 kg |
- Specifications are subject to change without notice.
- Distance between centers will be changed because of different spindle bore.
- X axis travel will be changed because of different tool post.
- Machine length is including chip conveyor.
- Detail specification depends on quotation.
- Standard or optional depends on quotation.
Standard Equipment & Accessories
- Controller FANUC 0iTD
- Color LCD 10.4”
- Spindle motor 30 HP, αP 40 i
- Spindle motor 40 HP, αP 50 i ( only for CL 58 )
- Spindle bore 120, 186 mm
- Spindle bore 258, 375 mm ( Only for CL 58 )
- Spindle mechanical orientation
- Cs axis function or Cf axis function
- 3 - jaw hollow hydraulic chuck
- 3 - jaw manual scroll chuck
- 4 - jaw manual independent chuck
- Pneumatic power chuck
- Vertical 8 - station turret, tool holders & sockets
- Horizontal 4 - station turret, tool holders & sockets
- Horizontal 6 - station turret, tool holders & sockets
- V12 Driven tool system without tool holder & sockets
- Quick change tool post
- Boring attachment without boring bar
- Steady rest with roller jaw, φ 40 ~ 235 mm
- Steady rest with roller jaw, φ 190 ~ 405 mm
- Tailstock with built - in - center & Dead center MT # 5
- Self-center follow rest
- Manual follow rest
- Hydraulic system
- Coolant pan & Coolant system
- Chip conveyor
- Double door & Splash guard
- Work light
- Tool box with adjusting tool
- Transformer
Optional Equipment & Accessories
- Transformer
| Swing over bed | 660 mm |
| Swing over cross slide | 370 mm |
| Distance between centers | 1155, 1655, 2155, 3435, 4385 mm |
| Width of bed | 460 mm |
| X - axis | 540 mm |
| Z - axis | 950, 1450, 1950, 3220, 4170 mm |
| Spindle bore | φ 120 mm ( A2 - 11, 6 ~ 1600 rpm ) φ 186 mm ( A2 - 15, 3 ~ 1000 rpm ) |
| Number of spindle speed range | 2 |
| OD tool shank | V 8 : φ 25 mm H 4 : φ 32 mm ( Option ) |
| ID tool shank ( Max. ) | V 8 : φ 40 mm H 4 : φ 50 mm ( Option ) H 6 : φ 50 mm ( Option ) |
| X - axis | 10 m / min |
| Z - axis | 10 m / min |
| Tailstock stroke | 220 mm |
| Quill diameter | 150 mm |
| Quill tpaer | MT # 5 |
| Main motor (30 min.) | αP 40 i ( 30 HP / 25 HP ) |
| Servo motor | X : α 12 is ( 3.6 HP ) Z : α 22 is ( 5.4 HP ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 5335, 5790, 6290, 6940, 8370 mm |
| Width of machine | 2313 mm |
| Height of machine | 2000 mm |
| Weight of machine | 6400, 6800, 7400, 8400, 10100 kg |
- Specifications are subject to change without notice.
- Distance between centers will be changed because of different spindle bore.
- X axis travel will be changed because of different tool post.
- Machine length is including chip conveyor.
- Detail specification depends on quotation.
- Standard or optional depends on quotation.
