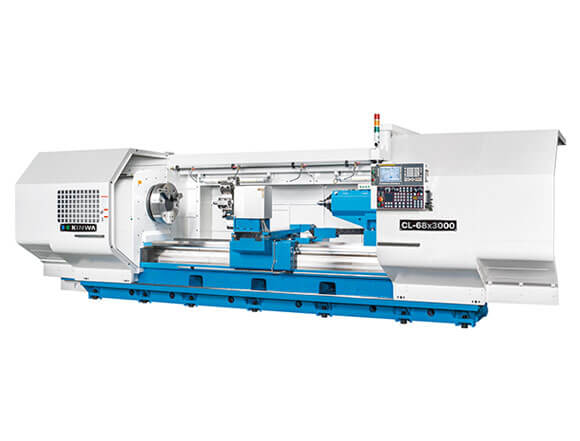

CL-68
- Swing 1150, 1500 mm
- Between centers 1000 ~ 6000 mm
- Spindle bore 181, 255, 375, 530 mm
- Spindle motor 60 HP
| Swing over bed | 1150 mm |
| Swing over cross slide | 700 mm |
| Distance between centers | 1200, 2200, 3200, 4200, 5200, 6200, 7200 mm |
| Width of bed | 725 mm |
| X - axis | 560 mm |
| Z - axis | 1100, 2100, 3100, 4100, 5100, 6100, 7100 mm |
| Spindle bore | φ 181 mm ( A2 - 15, 6 ~ 650 rpm ) φ 255 mm ( A2 - 15, 6 ~ 650 rpm ) φ 375 mm ( A2 - 20, 4 ~ 500 rpm ) φ 530 mm ( A2 - 28, 2 ~ 300 rpm ) |
| Number of spindle speed range | 2 |
| OD tool shank | V8 : φ 32 mm H 4 , H 6 ( Option ) |
| ID tool shank ( Max. ) | V8 : φ 60 mm H 4 , H 6 ( Option ) |
| X - axis | 6 m / min |
| Z - axis | 6 m / min |
| Tailstock stroke | 180 mm |
| Quill diameter | 240 mm |
| Quill tpaer | MT # 6 |
| Main motor (30 min.) | α 40 i ( 60 HP / 50 HP ) |
| Servo motor | X : α 22 i ( 5.3 HP ) Z : α 40 i ( 8 HP ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 5820, 6820, 7820, 8820, 9820, 10820, 11820 mm |
| Width of machine | 3023 mm |
| Height of machine | 2254 mm |
| Weight of machine | 11800, 13260, 15110, 16980, 18850, 20730, 24000 kg |
- Specifications are subject to change without notice.
- Swing can be raised according your requirement.
- Distance between centers will be changed because of different spindle bore.
- X axis travel will be changed because of different tool post.
- Machine length is including chip conveyor.
- Detail specification depends on quotation.
- Standard or optional depends on quotation.
Standard Equipment & Accessories
- Controller FANUC 0iTD
- Color LCD 10.4”
- Spindle motor 60 HP, α 40 i
- 資料請協助整理成條列，舊網站資料擠成一團
Optional Equipment & Accessories
- Transformer
| Swing over bed | 1150 mm |
| Swing over cross slide | 700 mm |
| Distance between centers | 1200, 2200, 3200, 4200, 5200, 6200, 7200 mm |
| Width of bed | 725 mm |
| X - axis | 560 mm |
| Z - axis | 1100, 2100, 3100, 4100, 5100, 6100, 7100 mm |
| Spindle bore | φ 181 mm ( A2 - 15, 6 ~ 650 rpm ) φ 255 mm ( A2 - 15, 6 ~ 650 rpm ) φ 375 mm ( A2 - 20, 4 ~ 500 rpm ) φ 530 mm ( A2 - 28, 2 ~ 300 rpm ) |
| Number of spindle speed range | 2 |
| OD tool shank | V8 : φ 32 mm H 4 , H 6 ( Option ) |
| ID tool shank ( Max. ) | V8 : φ 60 mm H 4 , H 6 ( Option ) |
| X - axis | 6 m / min |
| Z - axis | 6 m / min |
| Tailstock stroke | 180 mm |
| Quill diameter | 240 mm |
| Quill tpaer | MT # 6 |
| Main motor (30 min.) | α 40 i ( 60 HP / 50 HP ) |
| Servo motor | X : α 22 i ( 5.3 HP ) Z : α 40 i ( 8 HP ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 5820, 6820, 7820, 8820, 9820, 10820, 11820 mm |
| Width of machine | 3023 mm |
| Height of machine | 2254 mm |
| Weight of machine | 11800, 13260, 15110, 16980, 18850, 20730, 24000 kg |
- Specifications are subject to change without notice.
- Swing can be raised according your requirement.
- Distance between centers will be changed because of different spindle bore.
- X axis travel will be changed because of different tool post.
- Machine length is including chip conveyor.
- Detail specification depends on quotation.
- Standard or optional depends on quotation.
