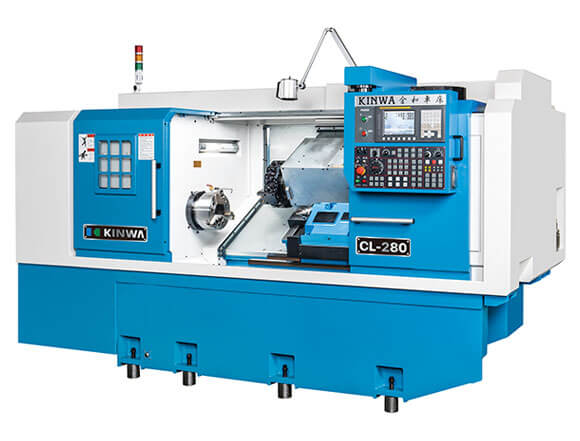

CL-280
- Chuck 8", 10"
- Swing 590 mm
- Between Center 580, 1180 mm
- Bar capacity 52, 80 mm
- Spindle motor 25 HP
| Swing over bed | φ 590 mm |
| Swing over carriage | φ 380 mm |
| Distance between centers | 1180 mm |
| Max. turning diameter | φ 450 mm |
| X - axis | 245 mm ( 230 + 15 ) |
| Z - axis | 1100 mm |
| Speed | 2200 rpm |
| Spindle nose | A2 - 8 |
| Spindle bore | φ 91 mm |
| Chuck | 10", 12" ( φ 80 mm ) |
| tools | Vertical 10 - station Servo turret |
| OD tool shank | φ 25 mm |
| ID tool shank ( Max. ) | φ 40 mm |
| X - axis | 16 m / min |
| Z - axis | 20 m / min |
| Tailstock stroke | 1000 mm |
| Quill diameter | 112 mm |
| Quill tpaer | MT # 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | 25 HP ( βiIP 30 ) |
| Servo motor | X axis : 2.4 HP ( βiS 12 ) Z axis : 3.4 HP ( βiS 22 ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 4350 mm |
| Width of machine | 1800mm |
| Height of machine | 1930 mm |
| Weight of machine | 5500 kgs |
- Specifications are subject to change without notice.
Standard Equipment & Accessories
- 0i-MateTD controller
- Hydraulic system
- Hollow 3 - jaw hydraulic chuck
- Hard jaw & soft jaw 1 SET / each
- V10 servo turret
- Boring bar holder 5 PCS
- Facing tool holder 2 PCS
- Boring bar socket ( M10, 12, 16, 20, 25, 32 ) 2 PCS / each
- Drill socket ( MT # 2, # 3 ) 1 PC / each
- Moving door & splash guard
- Coolant system with high power coolant pump
- Cool tank
- Chip conveyor & chip bucket
- For CL - 220 / CL - 250 : Manual tailstock with hydraulic quill, living center MT # 4
- For CL - 280 : Programmable tailstock with built-in center and hydraulic guill, dead centerMT # 4
- Work light
- Tool box & adjusting tool
Optional Equipment & Accessories
- Manual tool preset
- Auto door
- Oil skimmer ( Disc - type )
- Transformer
- Voltage regulator with Transformer
- CE Approval specification
- Parts catcher
Turning long shaft work-piece with tailstock and hydraulic quill to support the work-piece.
With FANUC controller 0iMateTD , 8.4" color LCD, new type control panel.
Vertical 10 - station servo turret with FANUC servo motor to index. Tool index quickly and it doesn't need another servo amp.
Box way structure for heavy duty cutting. Z axis with shear block safety coupling to prevent any accident.
CL - 220 with 8 inch hollow 3 - jaw hydraulic chuck, bar capacity 52 mm. CL - 250 with 10 inch hollow 3 - jaw hydraulic chuck, bar capacity 80 mm. CL - 280 with 10 / 12 inch hollow 3 - jaw hydraulic chuck, bar capacity 80 mm.
| Swing over bed | φ 590 mm |
| Swing over carriage | φ 380 mm |
| Distance between centers | 1180 mm |
| Max. turning diameter | φ 450 mm |
| X - axis | 245 mm ( 230 + 15 ) |
| Z - axis | 1100 mm |
| Speed | 2200 rpm |
| Spindle nose | A2 - 8 |
| Spindle bore | φ 91 mm |
| Chuck | 10", 12" ( φ 80 mm ) |
| tools | Vertical 10 - station Servo turret |
| OD tool shank | φ 25 mm |
| ID tool shank ( Max. ) | φ 40 mm |
| X - axis | 16 m / min |
| Z - axis | 20 m / min |
| Tailstock stroke | 1000 mm |
| Quill diameter | 112 mm |
| Quill tpaer | MT # 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | 25 HP ( βiIP 30 ) |
| Servo motor | X axis : 2.4 HP ( βiS 12 ) Z axis : 3.4 HP ( βiS 22 ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 4350 mm |
| Width of machine | 1800mm |
| Height of machine | 1930 mm |
| Weight of machine | 5500 kgs |
- Specifications are subject to change without notice.
