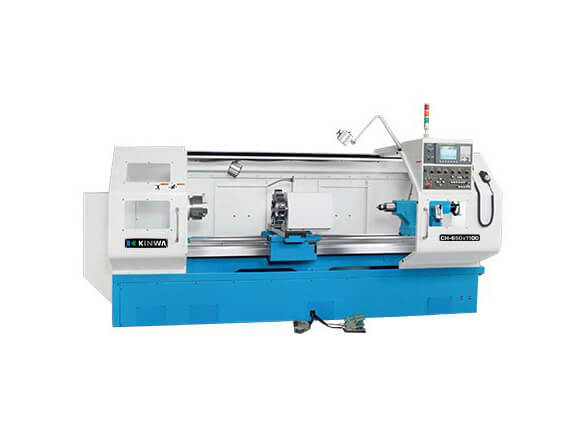

CL-650
- Swing 660 mm
- Between centers 1350 , 2100 mm
- Spindle bore 90 , 104 mm
- Spindle motor 15 HP
| Swing over bed | 660 mm |
| Swing over carriage | 370 mm |
| Distance between centers | 1350 , 2100 mm (*1) |
| Width of bed | 400 mm |
| X - axis | 280 mm |
| Z - axis | 1260 , 2060 mm |
| Speed | ( 2 gears ) 3 ~ 1600 rpm |
| Spindle nose | A 2 - 8 |
| Spindle bore | 90 , 104 mm (*2) |
| tools | V 8 |
| OD tool shank | 25 mm |
| ID tool shank ( Max. ) | 40 mm |
| X - axis | 8 m / min |
| Z - axis | 8 m / min |
| Quill diameter | 112 mm (*3) |
| Quill tpaer | MT # 4 (*3) |
| Quill stroke | 150 mm (*3) |
| Main motor (30 min.) | 15 HP / 11 kw |
| Servo motor | 1.6 HP / 1.2 kw |
| Coolant pump motor | 1/2 HP / 0.375 kw |
| Height of machine | 2035 mm |
| Weight of machine | 4200 , 5200 kgs |
| Floor space | 4930 , 5690 x 2040 mm |
- Specifications are subject to change without notice.
- Machine length is not including chip conveyor.
- Detail specification depends on quotation.
- (*1) Above between center is for hydraulic tailstock with built - in - center . If use manual tailstock , the between center is 1460 , 2210.
- (*2) The spindle bore is 90 mm with hydraulic chuck and the one is 104 mm with manual chuck.
- (*3) Above the specification of tailstock is for hydraulic tailstock with built - in - center . If use manual tailstock , the quill diameter is 80 mm , quill taper is MT # 5 and quill stoke is 260 mm.
| Swing over bed | 660 mm |
| Swing over carriage | 370 mm |
| Distance between centers | 1350 , 2100 mm (*1) |
| Width of bed | 400 mm |
| X - axis | 280 mm |
| Z - axis | 1260 , 2060 mm |
| Speed | ( 2 gears ) 3 ~ 1600 rpm |
| Spindle nose | A 2 - 8 |
| Spindle bore | 90 , 104 mm (*2) |
| tools | V 8 |
| OD tool shank | 25 mm |
| ID tool shank ( Max. ) | 40 mm |
| X - axis | 8 m / min |
| Z - axis | 8 m / min |
| Quill diameter | 112 mm (*3) |
| Quill tpaer | MT # 4 (*3) |
| Quill stroke | 150 mm (*3) |
| Main motor (30 min.) | 15 HP / 11 kw |
| Servo motor | 1.6 HP / 1.2 kw |
| Coolant pump motor | 1/2 HP / 0.375 kw |
| Height of machine | 2035 mm |
| Weight of machine | 4200 , 5200 kgs |
| Floor space | 4930 , 5690 x 2040 mm |
- Specifications are subject to change without notice.
- Machine length is not including chip conveyor.
- Detail specification depends on quotation.
- (*1) Above between center is for hydraulic tailstock with built - in - center . If use manual tailstock , the between center is 1460 , 2210.
- (*2) The spindle bore is 90 mm with hydraulic chuck and the one is 104 mm with manual chuck.
- (*3) Above the specification of tailstock is for hydraulic tailstock with built - in - center . If use manual tailstock , the quill diameter is 80 mm , quill taper is MT # 5 and quill stoke is 260 mm.
