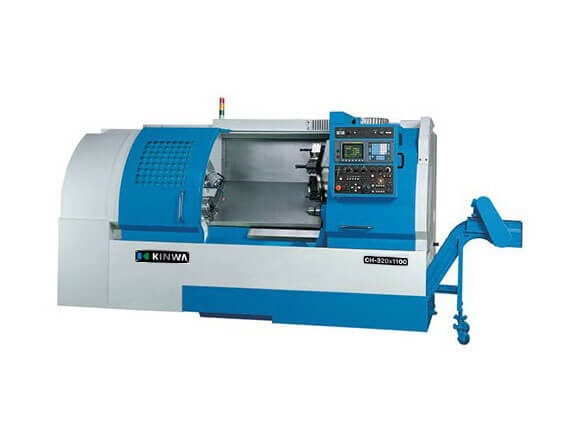

CL-320
- Chuck 12", 15"
- Swing 550 mm
- Between Center 730, 1230, 2210 mm
- Bar capacity 90, 115 mm
- Spindle motor 30 HP
| Swing over bed | 550 mm |
| Swing over carriage | 380 mm |
| Distance between face of spindle and center | 730 mm |
| Max. turning diameter | 470 mm ( Driven tool system : 300 mm ) |
| Max. cutting length | 580 mm |
| X - axis | 240 mm ( Driven tool system : 265 mm ) |
| Z - axis | 590 mm |
| Speed | 25 ~ 2000 rpm |
| Spindle nose | Ø 220 |
| Spindle bore | 101 mm |
| Chuck | 12" |
| Bar Capacity | 90 mm |
| tools | V 10 ( V 12 Driven tool system ) |
| OD tool shank | Ø 25 mm |
| ID tool shank ( Max. ) | Ø 40 mm |
| X - axis | 20 m / min |
| Z - axis | 20 m / min |
| Tailstock stroke | 460 mm |
| Quill diameter | Ø 112 mm |
| Quill tpaer | MT 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | FANUC αP 40 i, 30 HP 22 kw |
| Servo motor | X : 3.6 HP 2.7 kw Z : 5.4 HP 4 kw |
| Hydraulic unit motor | 3 HP 2.2 kw |
| Coolant pump motor | 1 HP 0.75 kw |
| Length of machine | 3940 mm |
| Width of machine | 1900 mm |
| Height of machine | 1934 mm |
| Weight of machine | 5500 kgs |
- Specifications are subject to change without notice.
- Detail equipmemt & accessories based on the quotation.
Standard Equipment & Accessories
- FANUC 0iTD controller
- Main motor 30 HP,αP 40 i
- 12" hollow 3 - jaw hydraulic chuck
- Hard jaws & soft jaw 1 SET / EACH
- Vertical 10 stations turret
- Boring bar holder 5 PCS
- Facing tool holder 2 PCS
- Boring bar socket 1 SET
- Morse taper socket 1 SET
- Hydraulic system
- Coolant tank & high power coolant system
- Moving door & splash guard
- Programmable tailstock with buit - in center and hydraulic quil
- Dead center MT # 4
- Work light
- Chip conveyor & chip bucket
- Tool box & adjusting tools
Optional Equipment & Accessories
- 15" hollow 3 - jaw hydraulic chuck for CL -320 B
- OD tool holder
- V 12 Driven tool system, not including tool holder
- Manual Steady rest 55 ~ 160 mm
- Self - centering steady rest 12 ~ 152 mm
- Manual tool measurement arm
- CS axis function
- CE approval specification
- Transformer
With FANUC controller 0iTD ,10.4" color LCD and new type control panel.
Programmable tailstock with built - in center, hydraulic quil and dead center MT # 4.
V 12 Driven tool system made in ltaly ( optional )
Vertical 10 - station turret
With 12 inch hollow 3 - jaw hydraulic chuck, bar capacity 90 mm CL - 320 B x 2000 can choose 15 inch hollow 3 - jaw hydraulic chuck as option, bar capacity 115 mm.
| Swing over bed | 550 mm |
| Swing over carriage | 380 mm |
| Distance between face of spindle and center | 730 mm |
| Max. turning diameter | 470 mm ( Driven tool system : 300 mm ) |
| Max. cutting length | 580 mm |
| X - axis | 240 mm ( Driven tool system : 265 mm ) |
| Z - axis | 590 mm |
| Speed | 25 ~ 2000 rpm |
| Spindle nose | Ø 220 |
| Spindle bore | 101 mm |
| Chuck | 12" |
| Bar Capacity | 90 mm |
| tools | V 10 ( V 12 Driven tool system ) |
| OD tool shank | Ø 25 mm |
| ID tool shank ( Max. ) | Ø 40 mm |
| X - axis | 20 m / min |
| Z - axis | 20 m / min |
| Tailstock stroke | 460 mm |
| Quill diameter | Ø 112 mm |
| Quill tpaer | MT 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | FANUC αP 40 i, 30 HP 22 kw |
| Servo motor | X : 3.6 HP 2.7 kw Z : 5.4 HP 4 kw |
| Hydraulic unit motor | 3 HP 2.2 kw |
| Coolant pump motor | 1 HP 0.75 kw |
| Length of machine | 3940 mm |
| Width of machine | 1900 mm |
| Height of machine | 1934 mm |
| Weight of machine | 5500 kgs |
- Specifications are subject to change without notice.
- Detail equipmemt & accessories based on the quotation.
